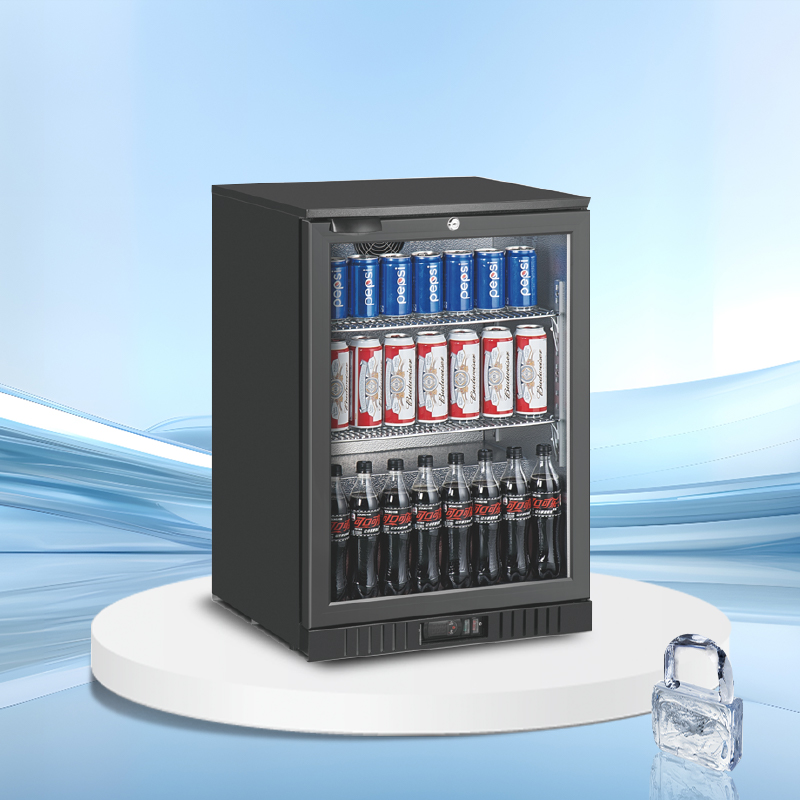

Glass Door Bar Display Chiller | AS Series

ASBC	Unit	108-FH1	108-FH2	108-FH3
Width	mm	500
Depth	mm	530
Height	mm	895	865	835
Effective Volume	L	108
Door amount	/	1
Net weight	KG	37	36	35
Loading Qty	PCS/40'HQ	168
Temperature	℃	0~10℃
Door open	/	Hinge door with automatic rebound design
Colling method	/	Fan cooling
Glass door	/	Double glazed door
Glass door frame	/	Lockable door
Thermostat	/	Digital controller
Castor	/	Adjustable feet
Refrigerant	/	R600a

ASBC	Unit	138-FH1	138-FH2	138-FH3	168-FH4
Width	mm	600			544
Depth	mm	530			645
Height	mm	895	865	835	953
Effective Volume	L	138			168
Door amount	/	1
Net weight	KG	43	42	41	49
Loading Qty	PCS/40'HQ	144			120
Temperature	℃	0~10℃
Door open	/	Hinge door with automatic rebound design
Colling method	/	Fan cooling
Glass door	/	Double glazed door
Glass door frame	/	Lockable door
Thermostat	/	Digital controller
Castor	/	Adjustable feet
Refrigerant	/	R600a

ASBC	Unit	208-FH1	208-FH2	208-FH3
Width	mm	900
Depth	mm	530
Height	mm	895	865	835
Effective Volume	L	208
Door amount	/	2
Net weight	KG	59	58	57
Loading Qty	PCS/40'HQ	96
Temperature	℃	0~10℃
Door open	/	Hinge door with automatic rebound design
Colling method	/	Fan cooling
Glass door	/	Double glazed door
Glass door frame	/	Lockable door
Thermostat	/	Digital controller
Castor	/	Adjustable feet
Refrigerant	/	R600a

ASBC	Unit	330-FH1	330-FH2	330-FH3
Width	mm	1350
Depth	mm	530
Height	mm	895	865	835
Effective Volume	L	330
Door amount	/	3
Net weight	KG	80	79	78
Loading Qty	PCS/40'HQ	66
Temperature	℃	0~10℃
Door open	/	Hinge door with automatic rebound design
Colling method	/	Fan cooling
Glass door	/	Double glazed door
Glass door frame	/	Lockable door
Thermostat	/	Digital controller
Castor	/	Adjustable feet
Refrigerant	/	R600a
